80-120 kg manual melting furnace
F80 S - F120 S

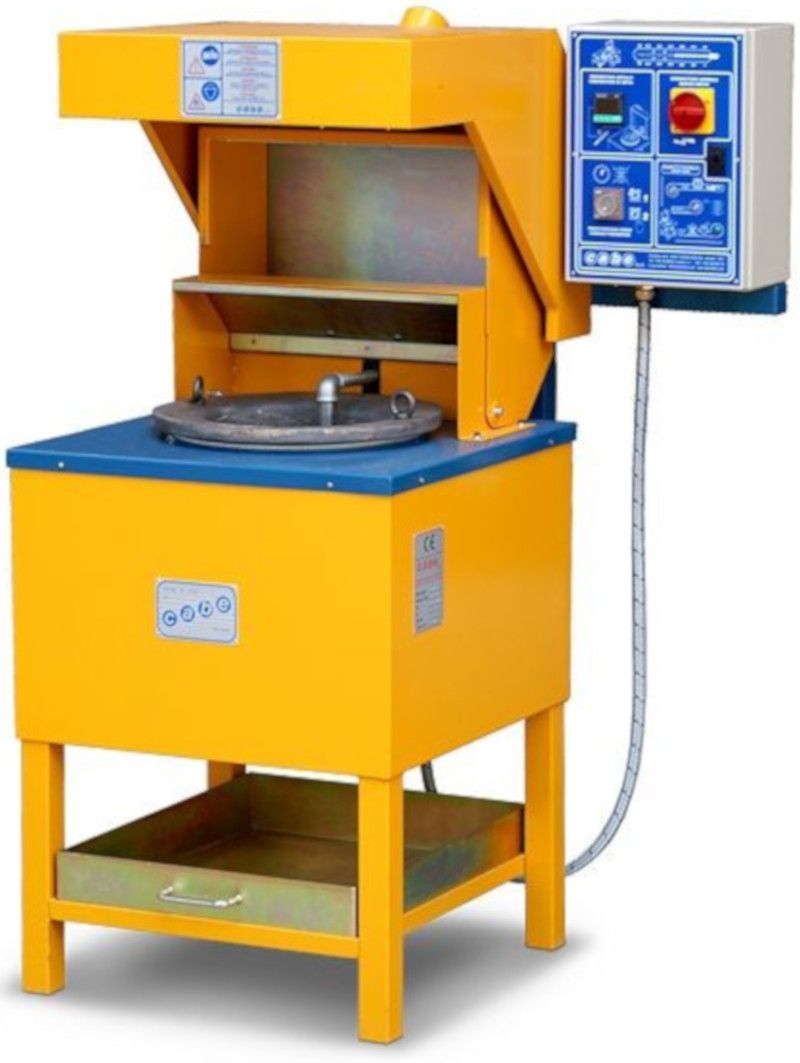

F80 S-F120 S manual melting furnace, with cast iron crucible.
It reaches a maximum temperature of 500 C° ideal for melting zinc alloys and tin/lead
Available in 80/120 kg crucible version.
What are the main advantages

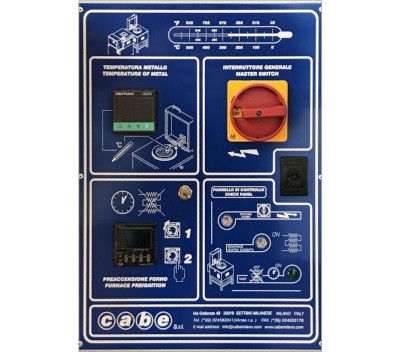

Instrumentation and controls
- Heating element preignition timer (up to 60 h)
- Pyrometer for precise control over metal temperature
- Highly corrosion-resistant thermocouple.
Crucible capacity
Two different crucibles are available:
- 80 kg- D=240 mm H=320 mm
- 120 kg- D=280 mm H=320 mm
Safety
- Fume collection hood
- Metal collection tank below the crucible.
Technical specifications
F80 S
| Crucible capacity | Litres Kg Zamak |
12,5 83 |
| Power | kW | 7 |
| Voltage | V 3~ | 380 |
| Overall dimensions | L cm P cm H cm |
90 72 154 |
| Weight | Kg | 240 |
F120 S
| Crucible capacity | Litres Kg Zamak |
18 119 |
| Power | kW | 7 |
| Voltage | V 3~ | 380 |
| Overall dimensions | L cm P cm H cm |
90 72 154 |
| Weight | Kg | 253 |
