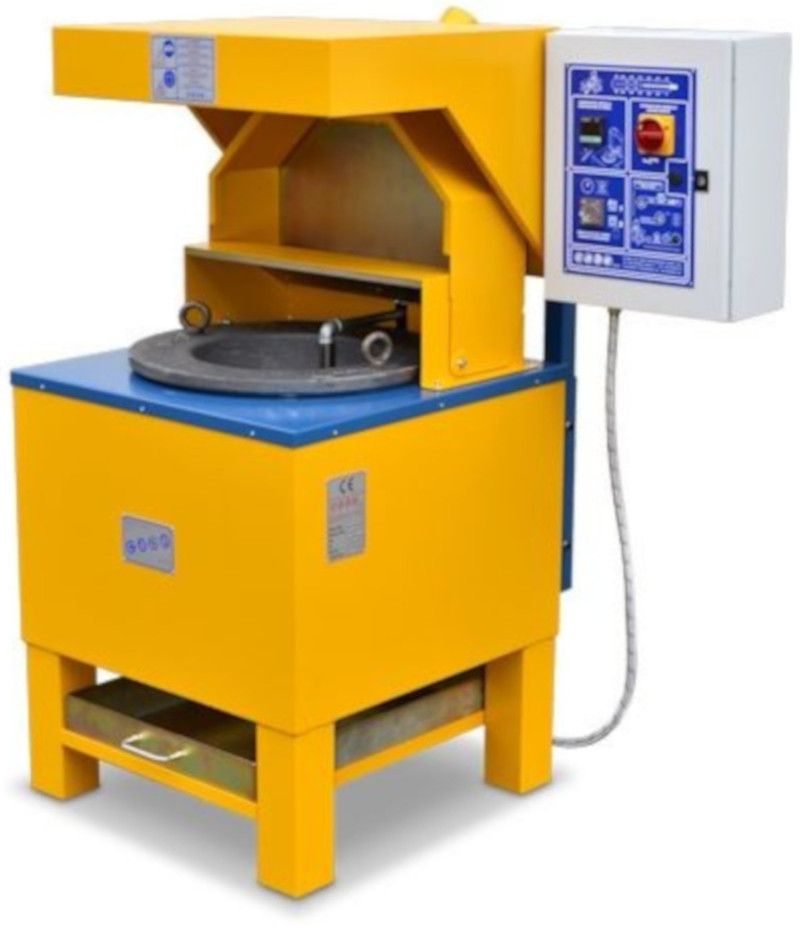

F200 S manual melting furnace
F200 S
F200 S manual melting furnace, with cast iron crucible. It reaches a maximum temperature of 500 C° ideal for melting zinc and tin/lead alloys. The furnace is equipped with a cast iron crucible that can hold up to 190 kg of zinc alloy, or 290 kg of tin alloy.
What are the main advantages
Instrumentation and controls
- Heating element preignition timer (up to 60 h)
- Pyrometer for precise control over metal temperature
- Highly corrosion-resistant thermocouple.
Safety
- Fume collection hood
- Metal collection tank below the crucible.
Technical specifications
| Crucible capacity | Litres Kg Zamak |
28,5 188 |
| Power | kW | 12 |
| Voltage | V 3~ | 380 |
| Overall dimensions | L cm P cm H cm |
|
| Weight | Kg |
