C500 PLC manual centifuge
C500 PLC
Manual centrifuge for casting of metal, wax or resin.

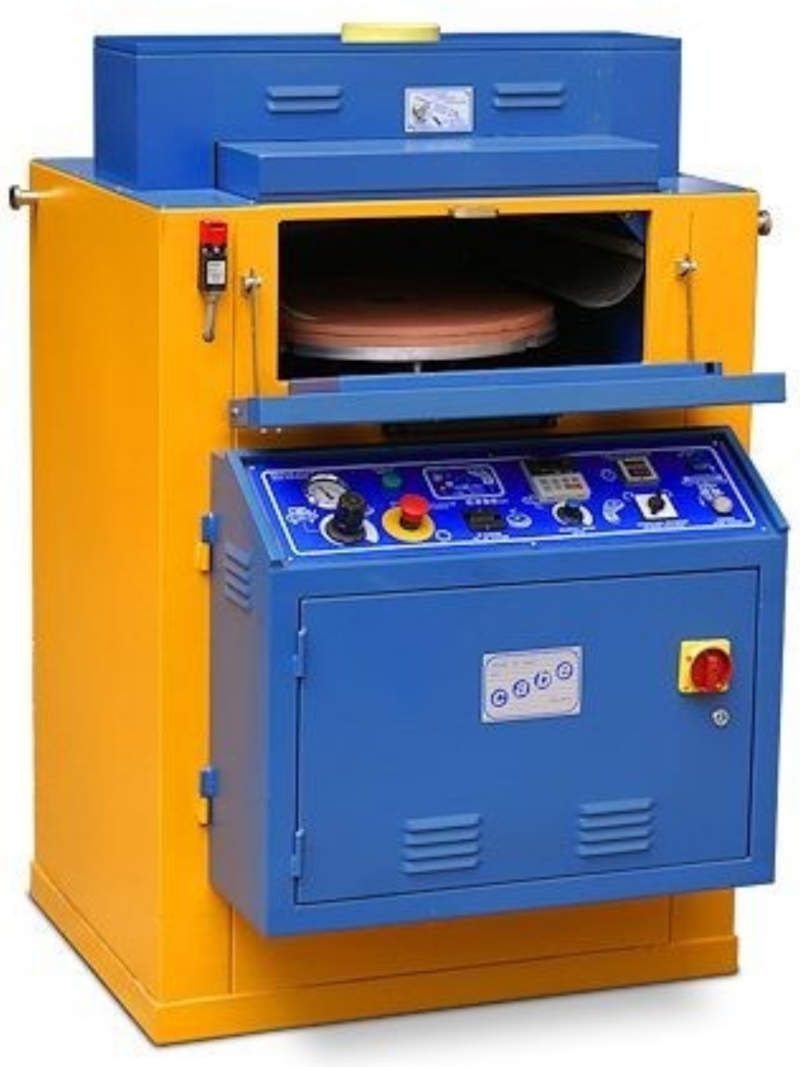

The C500 PLC manual centrifuge is designed for the production of large subjects: moulds up to 500 mm diameter can be accommodated between its plates.
It combines ease of use with exceptional mechanical strength to return excellent results with substantial masses.
Spin casting
Manual centrifuges are used for mass production of a variety of objects by centrifugal casting into silicone rubber molds (spin casting).It combines ease of use with exceptional mechanical strength to return excellent results with substantial masses.
The material in its liquid state is manually poured into a rubber funnel. From here it reaches the rotating rubber mold.
What are the main advantages

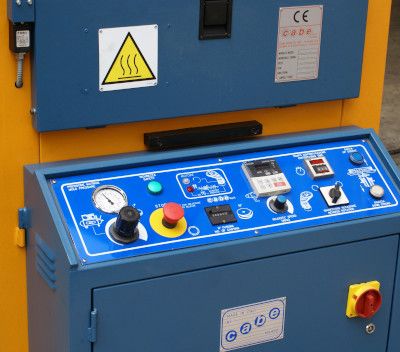

Instrumentation and controls
- PLC (Programmable Logic Controller) for global control and programming of functions
- Mold rotation speed control by inverter with potentiometer
- Digital timer to set rotation duration
- Pressure adjustment handle with corresponding pressure gauge
- Clockwise/counterclockwise mold rotation selector
Safety
- Front door for easy access to tools, separated from the mechanical components area
- General door lock switch
- Safety limit switch for locking the machine when each access door to internal parts is opened
- Compressed air shut-off and exhaust valve
Technical specifications
| Stations available | No. | 1 |
| Maximum mould diameter | mm | 500 |
| Power | kW | 2 |
| Voltage | V 3~ | 380 |
| Frequency | Hz | 50/60 |
| Overall dimensions | L cm P cm H cm |
100 95 115 |
| Weight | Kg | 250 |
